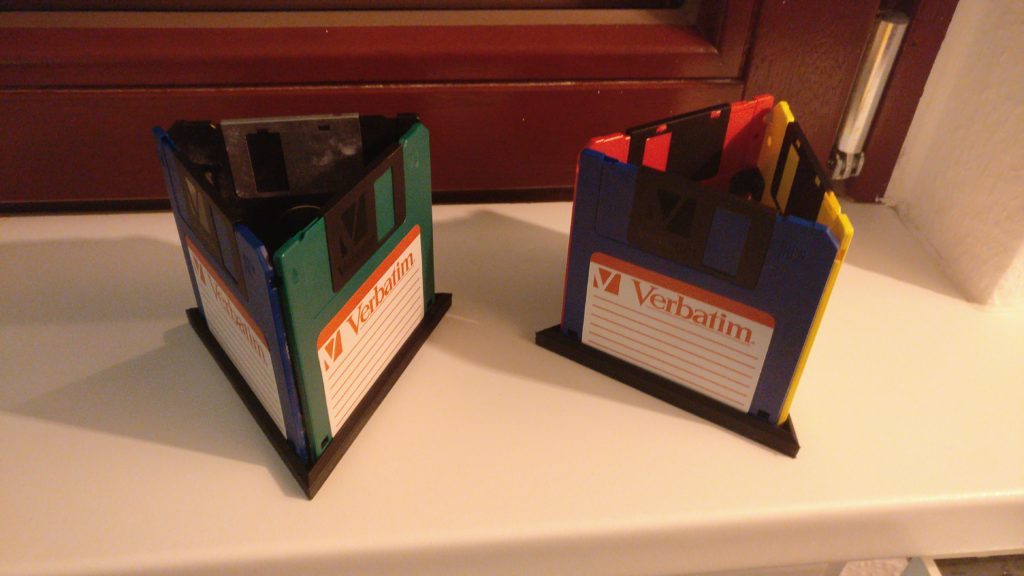

Recently I realised, that my girlfriend had some Floppy Disk left over, which are relics of my childhood and youth. Hence there is no real use for this historic storage media anymore, I decided to recycle / upcycle those Floppy Disks. The result where these FloppyDisk Pen Holder.
How I designed the FloppyDisk Pen Holder
I used FreeCAD to design this thing.
I also used Blender to have a better look on the models, hence FreeCAD had no good 3D preview mode, where I can freely move and rotate the objects in the 3D space.
Initially I build a surrounding cover for the top of the holder, which is also included in the downloads. But I realised, that that would cover to much of the Floppy Disk. That would destroy their unique look. That’s why I build tiny edge connectors. I used liquid adhesive to stick the connectors and disks together. I also use liquid glue to fix the disks on the ground plate.
Print settings for the FloppyDisk Pen Holder
- Printer : Prusa i3 MK2S
- Rafts: No
- Supports: Yes (only for edge connectors)
- Resolution: 0,10 mm
- Infill: 20%
- Filament: Prusament
- Filament color: black
- Filament material: PLA
Models
Downloads:
- All: https://www.ask-sheldon.com/wp-content/uploads/2019/10/FloppyDiskHolder.zip
- Base: FloppyDiskHolder
- Top frame (optional) FloppyDiskHolderTop
- Clips:Â FloppyDiskHolderTopClips
As all of my 3D models, I also published this project on Thingiverse and Printables.
